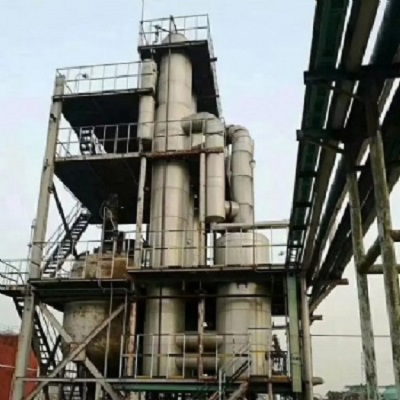

Yiwu Weihao Machinery Equipment Factory designs and produces high-performance forced circulation evaporators dedicated to salty water and brine processing. This equipment is engineered to solve the pain points of high-salinity wastewater treatment—such as scaling, corrosion, and low evaporation efficiency—providing a stable, efficient, and cost-effective solution for zero-liquid-discharge (ZLD) and brine concentration projects.
Our forced circulation evaporator for salty water / brine is a specialized equipment tailored for high-salinity liquid processing, widely used in chemical, petrochemical, textile, food, and environmental protection industries. Unlike conventional evaporators, it adopts a forced circulation design—driven by high-power pumps to ensure rapid and uniform circulation of brine in the heating tubes, effectively preventing scaling and fouling (a common problem in brine treatment). The equipment can handle brine with salinity up to 200,000 ppm, realizing efficient concentration, salt recovery, and zero liquid discharge, helping enterprises meet environmental emission standards and reduce resource waste.
Feed Preparation: High-salinity brine or salty water is pre-filtered to remove solid impurities, avoiding blockage of heating tubes and circulation pumps.
Forced Circulation: The pre-treated brine is pumped into the heating chamber by a high-pressure circulation pump, forming a high-speed turbulent flow in the heating tubes—this prevents salt crystallization and scaling on the tube walls.
Heating & Evaporation: The brine is heated by steam in the heating tubes, and under vacuum conditions (-0.06 to -0.095 MPa), the water in the brine boils and evaporates at a low temperature (50–80°C).
Vapor Condensation: The generated water vapor is condensed into pure water by a condenser, which can be recycled for production or discharged up to standard.
Brine Concentration & Salt Recovery: The unevaporated brine is continuously circulated and concentrated until it reaches the saturation state, then enters the crystallization unit for salt separation and recovery—achieving resource reuse and zero liquid discharge.
Anti-Scaling & Anti-Fouling: High-speed forced circulation creates turbulent flow, preventing salt crystallization and scaling on heating tube walls, reducing maintenance frequency and extending equipment service life.
High Salinity Adaptability: Capable of handling brine with salinity 50,000–200,000 ppm, suitable for various high-salinity wastewater (such as chemical brine, desalination wastewater, and textile printing and dyeing wastewater).
Corrosion Resistance: Contact parts are made of corrosion-resistant materials (316L stainless steel, titanium alloy optional), effectively resisting the corrosion of high-salinity brine and extending equipment durability.
Efficient & Stable: Forced circulation design ensures uniform heating and high heat transfer efficiency, enabling continuous stable operation with adjustable concentration ratio and high throughput.
Energy-Saving & Environmental: Optional multi-effect or TVR energy-saving configuration, reducing steam consumption by 30–70%; realizing salt recovery and zero liquid discharge, complying with environmental protection standards.
Easy Operation & Maintenance: PLC + HMI automatic control system, real-time monitoring of temperature, pressure, salinity, and circulation speed; simple structure, easy to clean and maintain.
Material | 316L/2205/Ti |
Salinity Handling Capacity | 50,000–200,000 ppm |
Evaporation Capacity | 100–1000000 L/h (Customizable) |
Operating Conditions | –0.06~–0.095 MPa, 50–80°C |
Energy Saving Option | Multi-effect / TVR /MVR |
Widely used in industries requiring high-salinity wastewater treatment and brine concentration, including: Chemical Industry (salt production brine, chemical wastewater concentration); Petrochemical Industry (oilfield produced water, refinery brine); Environmental Protection (industrial high-salinity wastewater zero-liquid-discharge); Desalination Industry (seawater desalination brine treatment); Textile & Printing Dyeing Industry (high-salinity printing and dyeing wastewater); Food Industry (pickling brine, condiment brine concentration and salt recovery).
We provide one-stop solutions for your salty water / brine treatment needs: custom design based on your brine salinity, treatment capacity, and site constraints; professional manufacturing with strict corrosion-resistant and anti-scaling quality control; on-site installation, commissioning, and operator training; lifelong after-sales maintenance, spare parts supply, and technical support. Free technical consultation, brine sample test, and customized quotation are available—contact us to get your tailored solution.
